Chiller

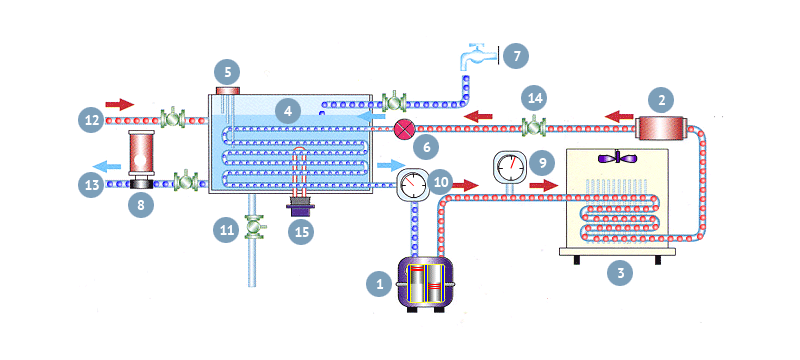

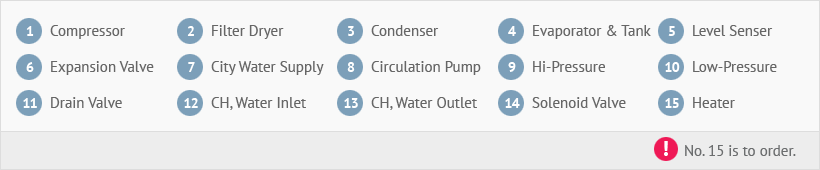

Flow Sheet

Specifications
MODEL KC10 020 KC10 030 KC10 050 KC10 080 KC10 100 KC10 150 KC10 200 KC10 300
Power Supply 380V / 3Ph / 60Hz
Refrigerant R-407C / R-22
Cooling cap kcal/hr 5,800 8,500 15,000 22,500 30,000 45,000 60,000 90,000
kW 6.10 9.15 15.72 24.72 32.40 40.20 47.40 78.00
Comp. Type Hermetic (Scroll)
Out put (kW) 1.5 2.2 3.75 5.5 7.5 11 15 22
Circ.Pump Type Multistage Centrifugal Pump
Motor (kW x p) 0.55 0.55 0.75 1.1 1.5 1.85 2.2 3.0
Head (mh) 25 25 25 25 25 25 25 25
Flowrate (ℓ/min) 30 30 75 108 150 186 270 300
Condenser Fan (ø x B x ea) 400x4x1 450x4x1 550x4x1 600x4x1 550x4x2 600x4x2 650x4x2 630x4x3
Motor(kW x p x ea) 0.1x6x1 0.2x6x1 0.4x6x1 0.4x6x1 0.4x6x2 0.4x6x2 0.75x6x2 0.75x6x3
Freezing
Protection
Type STS- Heater
Out put (kW) 1.0 2.0 3.0
Tank Capacity (ℓ) 32 43 80 120 130 160 280 545
Pipe Conn. Inlet / Outlet (A) 20 25 32 40 50
Make up (A) 15
Drain(A) 15 20
Out-Dimension


W 600 705 750 750 830 965 940
L 948 1,300 1,480 1,510 1,815 2,015 2,670
H 1,367 1,525 1,515 1,780 1,830 2,115 2,031
Gross Weight (Kg) 200 280 330 400 460 600 800 980
Power Consupumption (kW) 2 2.8 5 7 10.0 13.7 18.7 27.5
Cable Size 220V / wire (㎟) 2.5 4.0 6.0 6.0 10.0 16.0 25.0 35.0
380V / wire (㎟) 2.5 2.5 4.0 6.0 6.0 10.0 16.0 25.0
