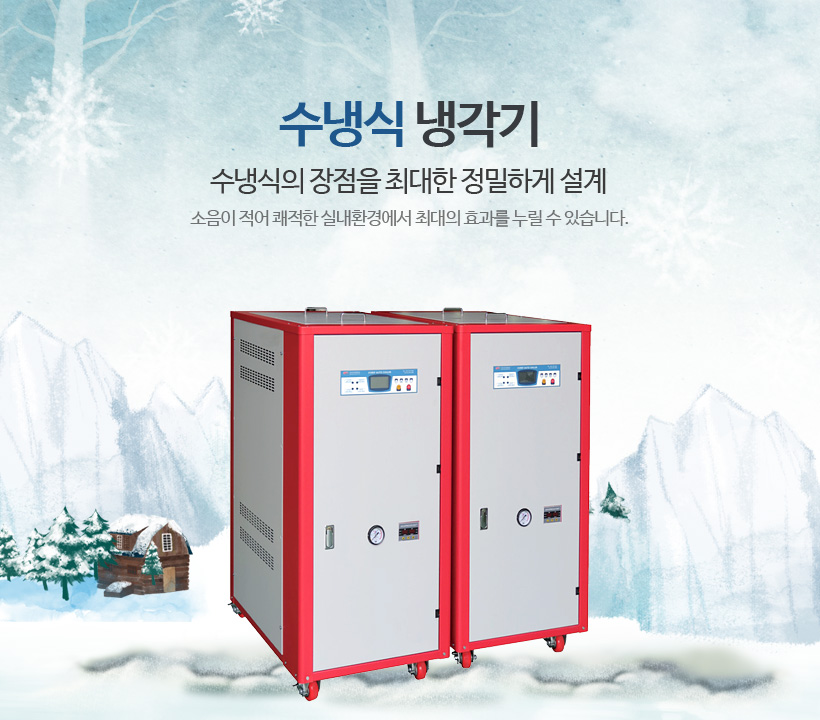

냉각기

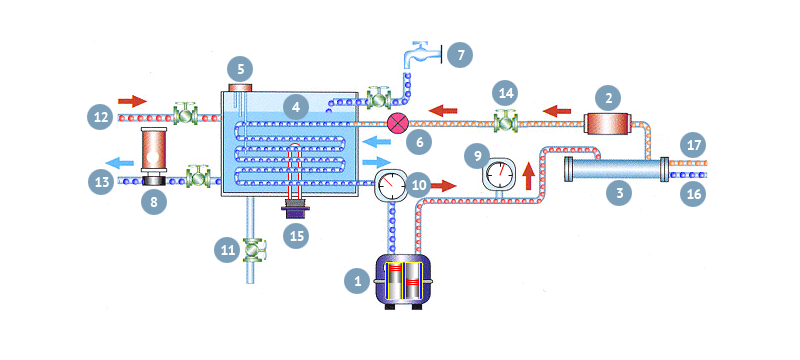

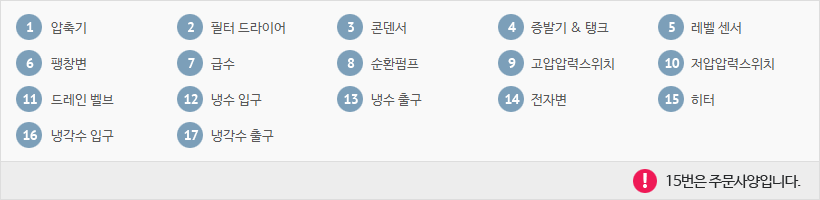

계통도

표준사양

※ 냉방능력(R-22)기준 : ET:7.2℃, CT:37.8℃일때 압축기설계기준임

MODEL KC20 020 KC20 030 KC20 050 KC20 080 KC20 100 KC20 150 KC20 200 KC20 300
전 원 (Power Supply) 380V / 3Ph / 60Hz
사용냉매 (Refrigerant) R-407C / R-22
냉방능력
(cooling cap)
kcal/hr 5,800 8,500 15,000 22,500 30,000 45,000 60,000 90,000
kW 6.10 9.15 15.72 24.72 32.40 40.20 47.40 78.00
압축기
(Comp.)
Type Hermetic (Scroll)
Out put (kW) 1.5 2.2 3.75 5.5 7.5 11 15 22
순환펌프
(Circ.Pump)
Type Multistage Centrifugal Pump
Motor (w x p) 0.55 0.55 0.75 1.1 1.5 1.85 2.2 3.0
Head (mh) 25 25 25 25 25 25 25 25
Flowrate (ℓ/min) 30 30 75 108 150 186 270 300
동파방지
(Freezing
Protection)
Type STS- Heater
Out put (kW) 1.0 2.0 3.0
탱크용량 (Tank Capacity) ℓ 32 43 80 120 130 160 280 545
배 관
(Pipe Conn.)
Inlet / Outlet (A) 20 25 32 40 50
Make up (A) 15
Drain(A) 15 20
냉각수유량
접속구경
냉각수유량 33 45 75 102 160 196 240 387
접속구경 20A 25A 32A 40A 40A 50A 50A 65A
외형치수
(Out-Dimension)


W 500 650 700 700 820 950
L 900 1,100 1,240 1,550 1,590 2,100
H 1,270 1,450 1,540 1,600 1,800 1,840
제품중량
Gross Weight (Kg)
200 280 330 370 500 550 675 1,100
소비전력
Power Consupumption (kW)
1.9 2.6 4.5 6.6 9 12.9 17.2 25.0
전선용량
(Cable Size)
220V / wire (㎟) 2.5 4.0 6.0 6.0 10.0 16.0 25.0 35.0
380V / wire (㎟) 2.5 2.5 4.0 4.0 6.0 10.0 16.0 25.0
