냉각기

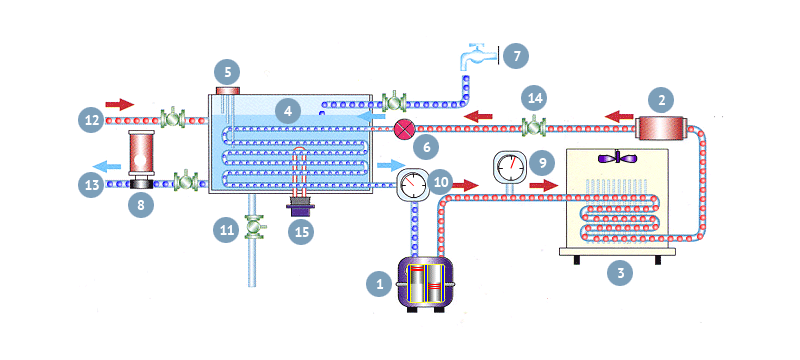

계통도

표준사양

※ 냉방능력(R-22)기준 : ET:7.2℃, CT:54.4℃일때 압축기설계기준임

MODEL KC10 020 KC10 030 KC10 050 KC10 080 KC10 100 KC10 150 KC10 200 KC10 300
전 원 (Power Supply) 380V / 3Ph / 60Hz
사용냉매 (Refrigerant) R-407C / R-22
냉방능력
(cooling cap)
kcal/hr 5,800 8,500 15,000 22,500 30,000 45,000 60,000 90,000
kW 6.10 9.15 15.72 24.72 32.40 40.20 47.40 78.00
압축기
(Comp.)
Type Hermetic (Scroll)
Out put (kW) 1.5 2.2 3.75 5.5 7.5 11 15 22
순환펌프
(Circ.Pump)
Type Multistage Centrifugal Pump
Motor (kW) 0.55 0.55 0.75 1.1 1.5 1.85 2.2 3.0
Head (mh) 25 25 25 25 25 25 25 25
Flowrate (ℓ/min) 30 30 75 108 150 186 270 300
응축기
(Condenser)
Fan (ø x B x ea) 400x4x1 450x4x1 550x4x1 600x4x1 550x4x2 600x4x2 650x4x2 630x4x3
Motor(kW x p x ea) 0.1x6x1 0.2x6x1 0.4x6x1 0.4x6x1 0.4x6x2 0.4x6x2 0.75x6x2 0.75x6x3
동파방지
(Freezing
Protection)
Type STS- Heater
Out put (kW) 1.0 2.0 3.0
탱크용량 (Tank Capacity) ℓ 32 43 80 120 130 160 280 545
배 관
(Pipe Conn.)
Inlet / Outlet (A) 20 25 32 40 50
Make up (A) 15
Drain(A) 15 20
외형치수
(Out-Dimension)
W 600 705 750 750 830 965 940
L 948 1,300 1,480 1,510 1,815 2,015 2,670
H 1,367 1,525 1,515 1,780 1,830 2,115 2,031
제품중량
Gross Weight (Kg)
200 280 330 400 460 600 800 980
소비전력
Power Consupumption (kW)
2 2.8 5 7 10.0 13.7 18.7 27.5
전선용량
(Cable Size)
220V / wire (㎟) 2.5 4.0 6.0 6.0 10.0 16.0 25.0 35.0
380V / wire (㎟) 2.5 2.5 4.0 6.0 6.0 10.0 16.0 25.0
