항온항습기

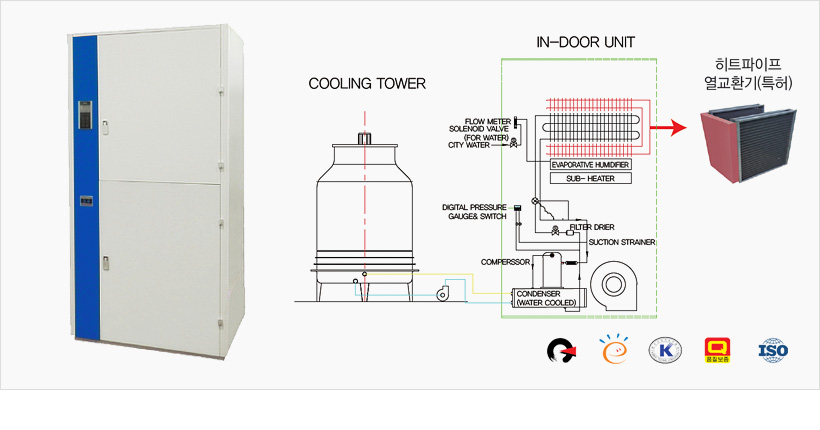

수냉식, 하향식
표준사양
MODEL KC60
030
KC60
050
KC60
060
KC60
075
KC60
100
KC60
150
KC60
200
KC60
300
전 원 (Power Supply) 220 / 380V~440V / 3Ph / 60Hz
사용냉매 (Refrigerant) R-22 / R-410A / R-134a
냉방능력
(cooling cap)
kcal/hr 10.492 17.372 20.984 23.478 34.744 46.956 74.132 90.644
kw 12.20 20.20 24.40 27.30 40.40 54.60 86.20 105.40
난방능력
(heating cap)
kcal/hr 2,580 2,580 5,160 5,160 8,600 8,600 10,320 10,320
kw 3.00 3.00 6.00 6.00 10.00 10.00 12.00 12.00
압축기
(Comp.)
Type Hermetic - Scroll Type
Out put (kw) 2.2 3.75 2.2 x 2 5.5 3.75 x 2 5.5 x 2 7.5 x 2 11.25 x 2
송풍기
(Blower)
Type Sirocco Fan / Direct - Drive
Motor
(kw x p x ea)
0.4 x 8 x 1 0.5 x 8 x 1 0.6 x 8 x 1 0.8 x 8 x 1 0.8 x 8 x 2 0.8 x 8 x 2 1.1 x 8 x 2 1.3 x 8 x 2
S.P (mmAq) 17~22 17∼22 17∼22 17∼22 17∼22 17∼22 17∼22 17∼22
Air Volume (CMM) 38 45 60 85 92 150 185 215
응축기
(Condenser)
Capacity(RT) 3 5 6(3+3) 7.5 10(5+5) 15(7.5+7.5) 20(10+10) 30(15+15)
Inlet/Outlet(A) 25 32 32 40 40 50 50 65
보조히터
(Heater)
Type STS-Aero Finned Tube Type
Out put (kw) 3.00 3.00 6.00 6.00 10.00 10.00 12.00 12.00
가습기
(Humidifier)
Type 기화식(Evaporative Type)
Capacity (L/hr) 4.00 5.00 8.00 8.00 10.00 15.00 20.00 25.00
배 관
(Pipe Conn.)
Suction (inch) 5/8" 3/4" 5/8"x2 7/8" 3/4"x2 7/8"x2 1-1/8"x2 1-3/8"x2
Discharge (inch) 3/8" 1/2" 3/8"x2 1/2" 1/2"x2 1/2"x2 5/8"x2 7/8"x2
Make-Up(inch) 1/4"
Drain (A) 20 25
외형치수
(Out-Dimension)
W 800 900 1,150 1,150 1,560 1,700 1,800 2,300
D 800 800 850 850 900 900 950 1,000
H 1,750 1,750 1,750 1,750 1,750 2,000 2,000 2,200
Power Consupumption (kw) 5.60 7.25 11.00 12,30 18.50 22.60 29.20 37.10
전선용량
(Cable Size)
220V / wire (㎟) 6.0 10.0 16.0 16.0 35.0 35.0 50.0 70.0
380V / wire (㎟) 4.0 4.0 6.0 6.0 16.0 25.0 25.0 35.0
